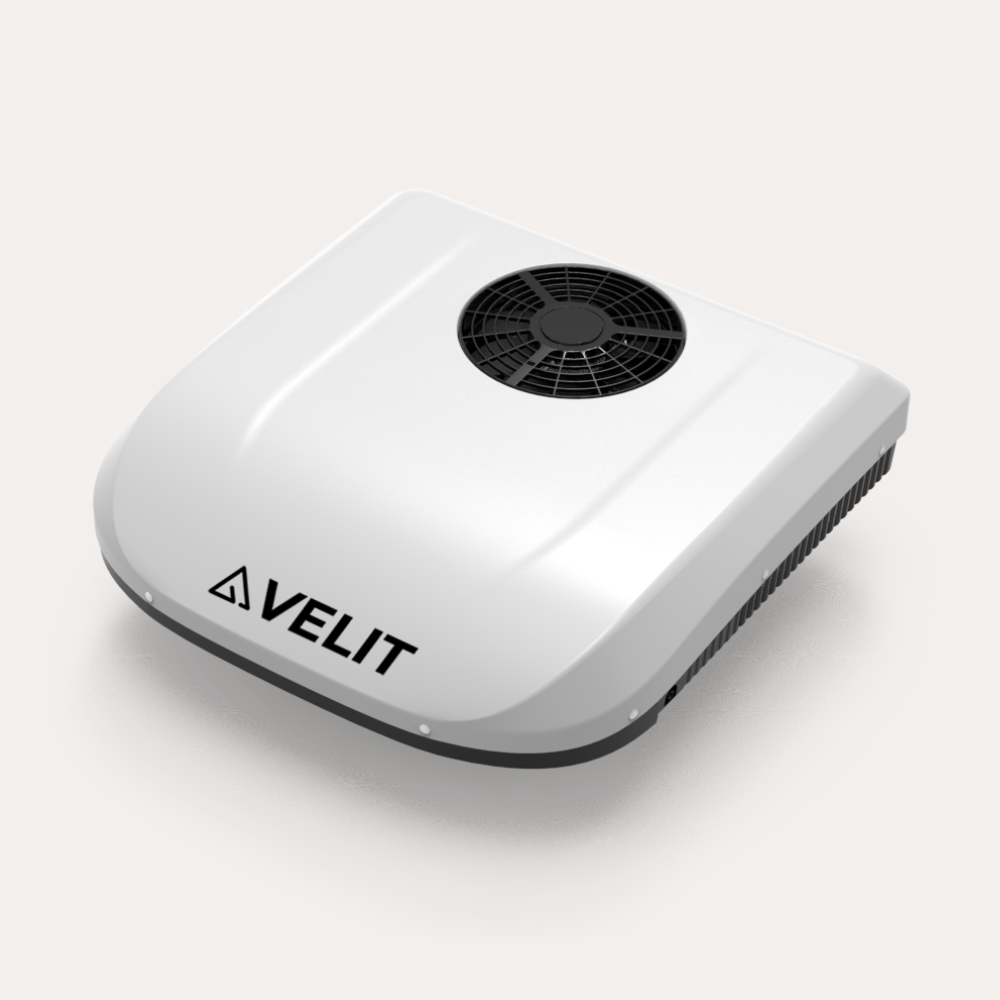

The Velit 3000R stands as our most powerful DC air conditioner to date. Equipped with a high-output tuned twin-cylinder rotor compressor, it delivers an impressive 12000 BTU of cooling capacity at 48V, while drawing as little as 6A. The unit features a flush-mount motorized air distribution box for optimal air circulation throughout the space. With a slim profile requiring only 7 inches of clearance, it fits seamlessly into standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware
- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (12AWG for 48V)
- User manual
* One-year limited warranty
SPECS
|
Model |
3000R |
|
Input Voltage |
DC24V/48V |
|
Operating Current |
13-40A/8-25A |
|
Cooling Capacity |
10000/12000BTU |
|
Air Flow Rate |
250 CFM |
|
Rated Power |
960W/1200W |
|
Refrigerant |
R410a 470g |
|
Power Consumption |
Eco mode: 300-400W Turbo mode: 900-1200W |
|
Noise Level |
Eco mode: 55dB Boost mode:65dB |
|

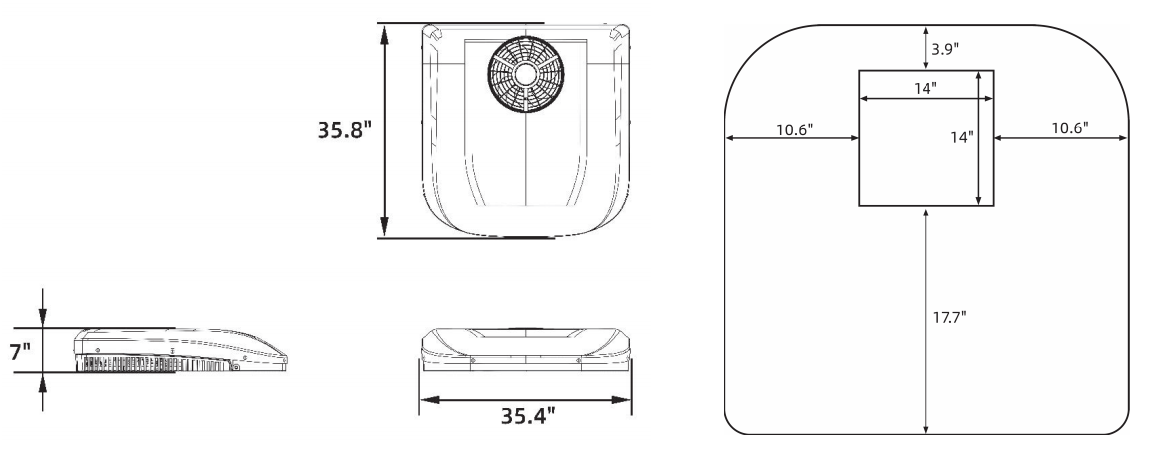

Roof Unit Dimension |
W35.8”*L35.4”*H7” |
|
ADB Dimension |
W20”*L19.7”*H2” |
|
Weight |
75lb |
